Waterproofing in the joint of the slotted wall — alternative arrangement
Slotted wall details
Drawings
- Alternative detail at the joint of the slotted (diaphragm) wall
Components
- 1Besamembran waterproofing membrane
- 2Slotted wall
- 3Joint arrangement

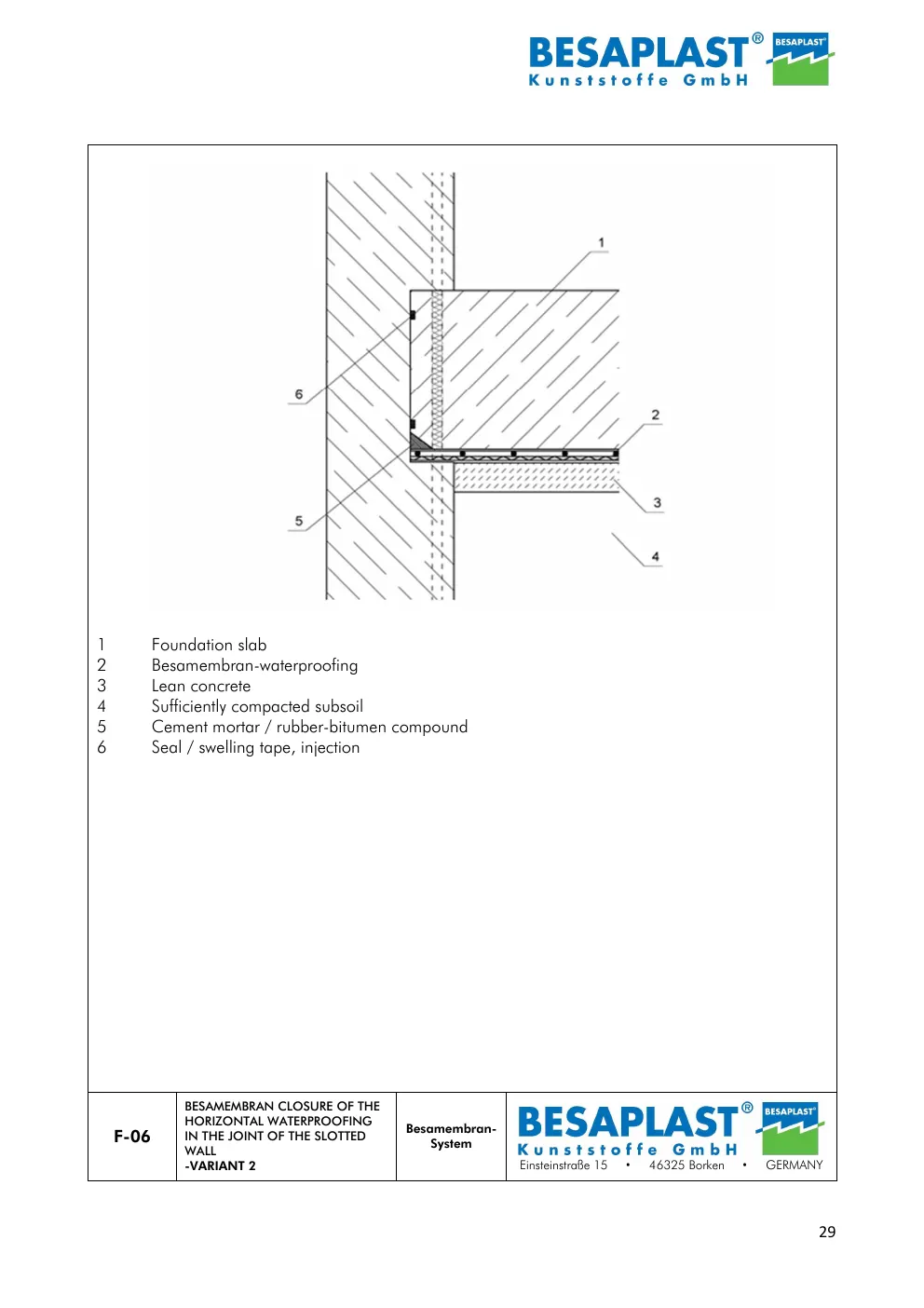

Drawing preview
Unaltered page from the BESAMEMBRAN Product Data Sheet 2026 (EN).
Page 29Open PDF at page 29
