Sealing the foundation slab — transition to the wall
Foundation slab details
Drawings

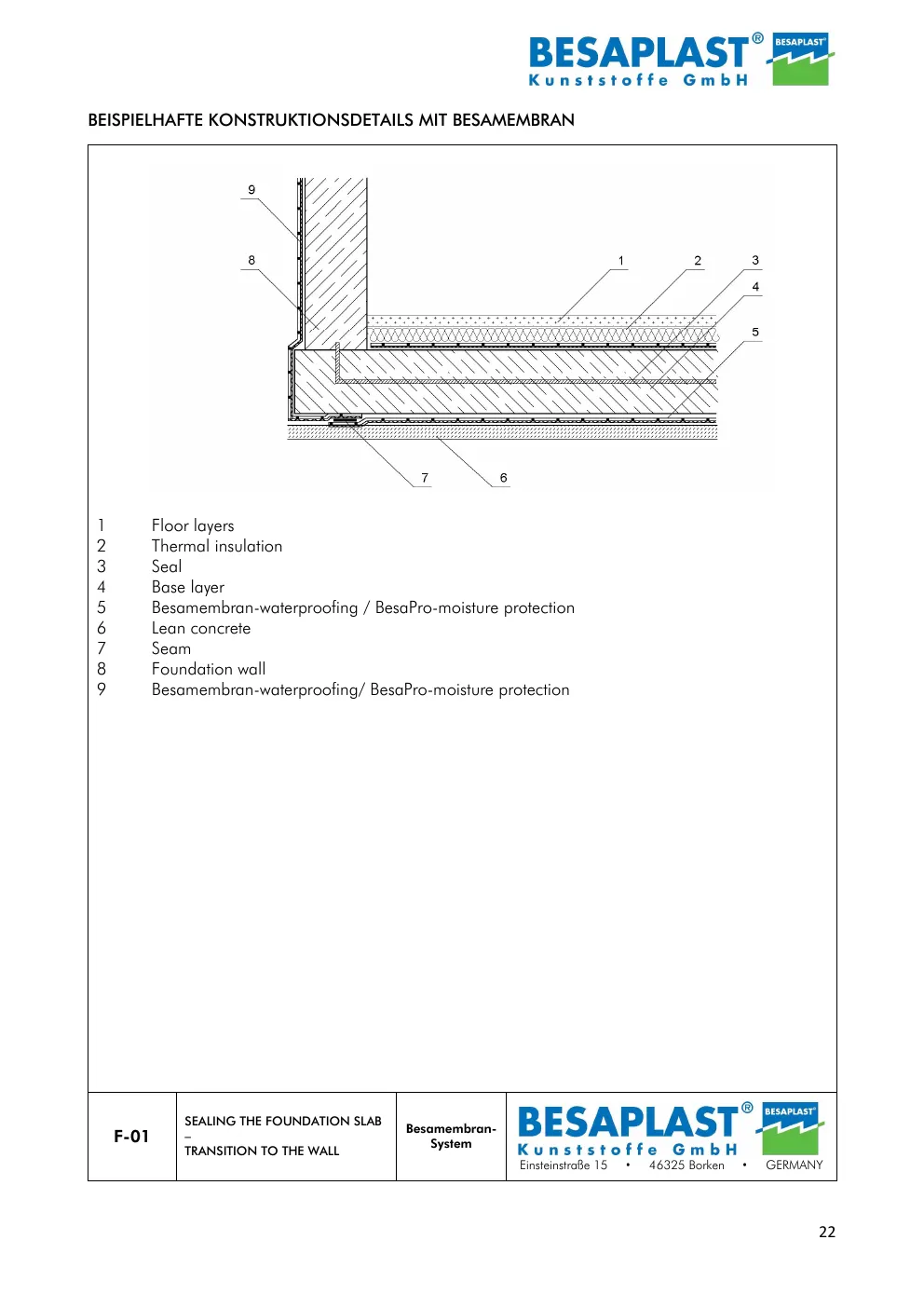

- Construction detail with Besamembran waterproofing at the slab-to-wall transition
Components
- 1Floor layers
- 2Thermal insulation
- 3Seal
- 4Base layer
- 5Besamembran waterproofing / BesaPro moisture protection
- 6Lean concrete
- 7Seam
- 8Foundation wall
- 9Besamembran waterproofing / BesaPro moisture protection
Drawing preview
Unaltered page from the BESAMEMBRAN Product Data Sheet 2026 (EN).
Page 22Open PDF at page 22
