Foundation slab waterproofing
Foundation slab details
Drawings
- Construction detail of the waterproofed foundation slab build-up
Components
- 1Foundation slab, min. 15 cm
- 2Reinforcement
- 3Seal
- 4Besamembran waterproofing / BesaPro moisture protection
- 5Seam / butyl tape
- 6Lean concrete
- 7Consolidated substrate
Drawing preview

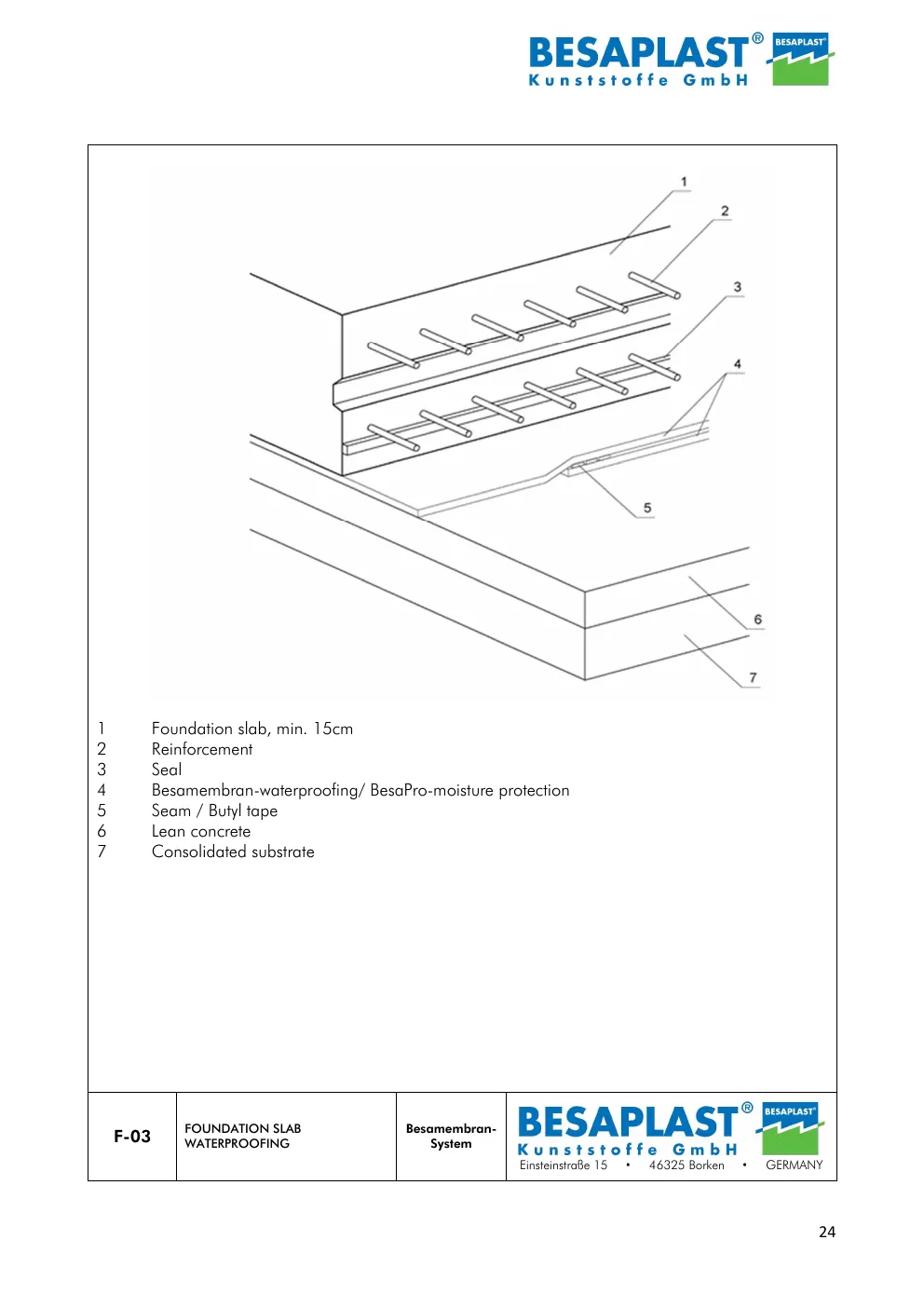

Unaltered page from the BESAMEMBRAN Product Data Sheet 2026 (EN).
Page 24Open PDF at page 24
