Foundation slab — expansion joint transition

Foundation slab details

Drawings

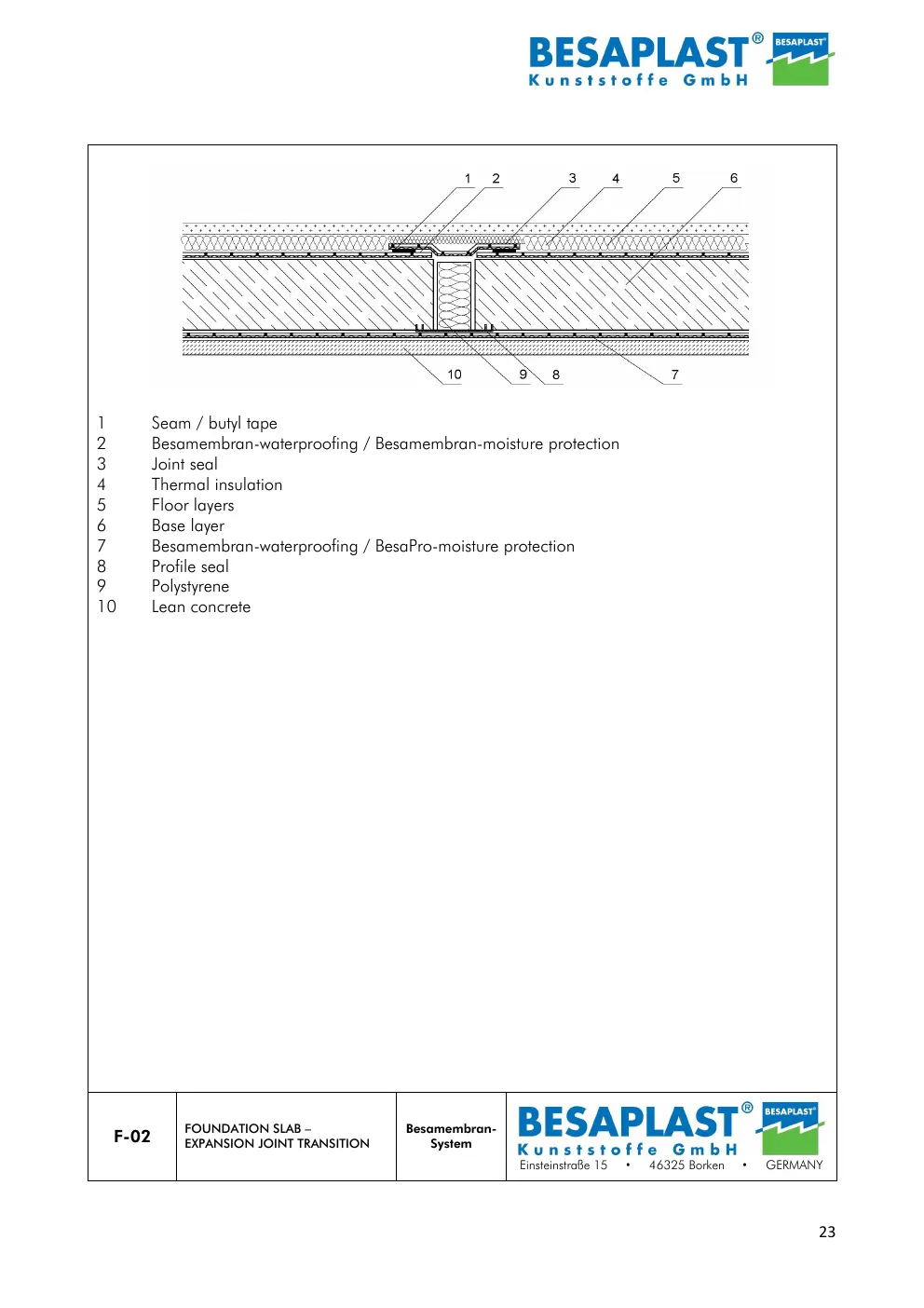

  1. Construction detail through the foundation slab expansion joint

Components

  1. 1Seam / butyl tape
  2. 2Besamembran waterproofing / Besamembran moisture protection
  3. 3Joint seal
  4. 4Thermal insulation
  5. 5Floor layers
  6. 6Base layer
  7. 7Besamembran waterproofing / BesaPro moisture protection
  8. 8Profile seal
  9. 9Polystyrene
  10. 10Lean concrete

Drawing preview

Unaltered page from the BESAMEMBRAN Product Data Sheet 2026 (EN).

Open the full data sheetRequest technical support

Other details in this series

Source: BESAMEMBRAN Product Data Sheet 2026 (EN)
