Sealing the pile head
Variants F-04.1 and F-04.2 are shown in the product data sheet
Foundation slab details
Drawings
- Pile head sealing detail, with variants F-04.1 and F-04.2
Components
- 1Besamembran waterproofing membrane
- 2Pile head
- 3Lean concrete
- 4Foundation slab

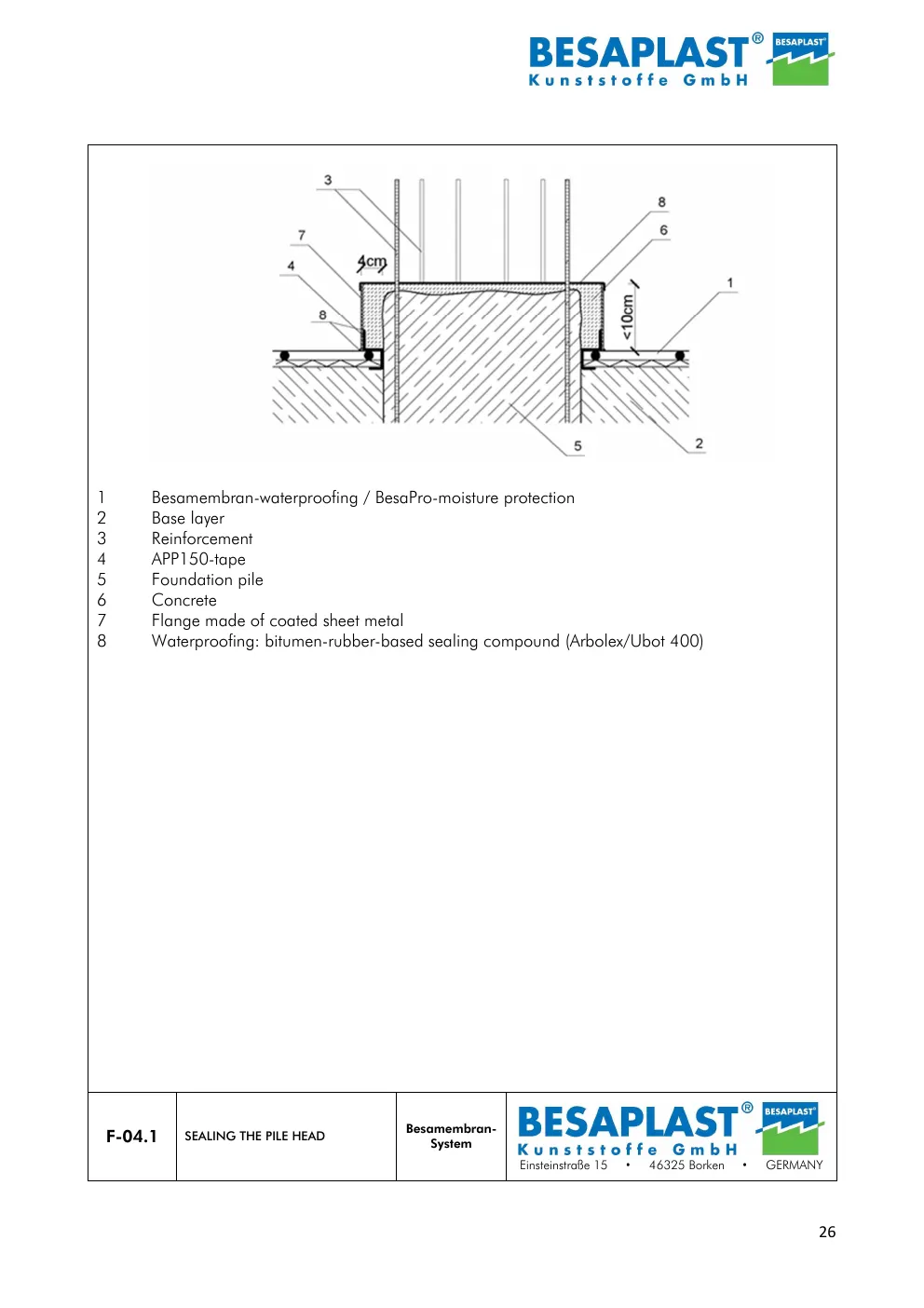

Drawing preview
Unaltered pages from the BESAMEMBRAN Product Data Sheet 2026 (EN).
Page 25Open PDF at page 25
Page 26Open PDF at page 26
Page 27Open PDF at page 27
Other details in this series
Source: BESAMEMBRAN Product Data Sheet 2026 (EN)
