Bonding and sealing between membrane sheets — longitudinal connection
Overlap min. 6 cm
Bonding and sealing between membrane sheets
Drawings

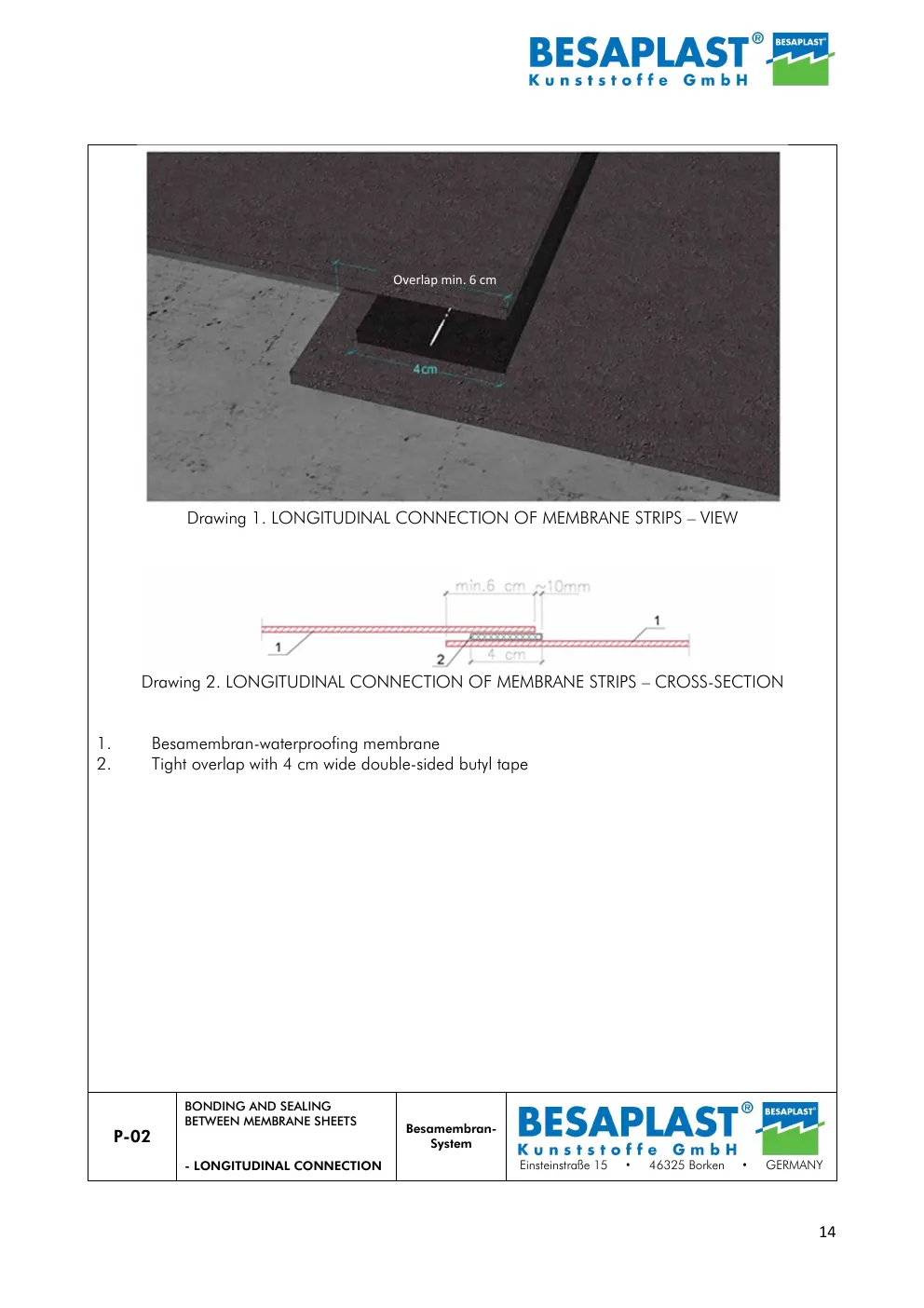

- Drawing 1. Longitudinal connection of membrane strips – view
- Drawing 2. Longitudinal connection of membrane strips – cross-section
Components
- 1Besamembran waterproofing membrane
- 2Tight overlap with 4 cm wide double-sided butyl tape
Drawing preview
Unaltered page from the BESAMEMBRAN Product Data Sheet 2026 (EN).
Page 14Open PDF at page 14
Other details in this series
Source: BESAMEMBRAN Product Data Sheet 2026 (EN)
