Connecting the foundation slab waterproofing to the wall waterproofing, installing the membrane on the Berlin shoring — details
Shoring connections
Drawings

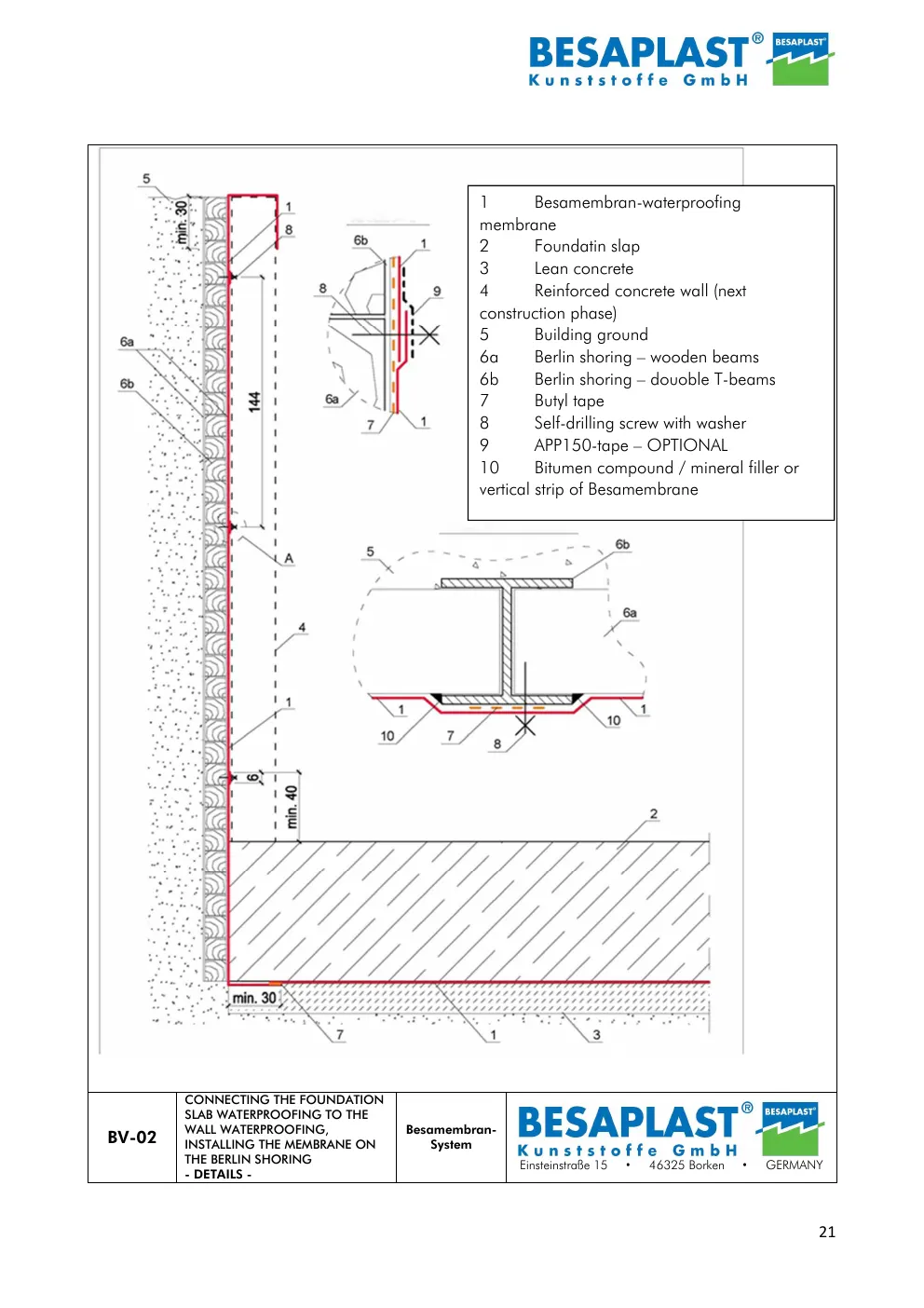

- Detail drawings with numbered component legend
Components
- 1Besamembran waterproofing membrane
- 2Foundation slab
- 3Lean concrete
- 4Reinforced concrete wall (next construction phase)
- 5Building ground
- 6Berlin shoring – wooden beams / double T-beams
- 7Butyl tape
- 8Self-drilling screw with washer
- 9APP150-tape – optional
- 10Bitumen compound / mineral filler or vertical strip of Besamembran
