Connecting the sealing of the foundation slab to the wall sealing; installing the membrane on the Berlin shoring — views
Shoring connections
Drawings
- Drawing 1.1. Sealing on the Berlin shoring – lower area
- Drawing 1.2. Sealing on the Berlin shoring – upper area
- Drawing 1.3. Sealing on the Berlin shoring – view
Components
- 1Besamembran waterproofing membrane
- 2Foundation slab
- 3Lean concrete
- 4Reinforced concrete wall (next construction phase)
- 5Building ground
- 6Berlin shoring – wooden beams / double T-beams
- 7Butyl tape
- 8Self-drilling screw with washer
- 9APP150-tape – optional
- 10Bitumen compound / mineral filler or vertical strip of Besamembran

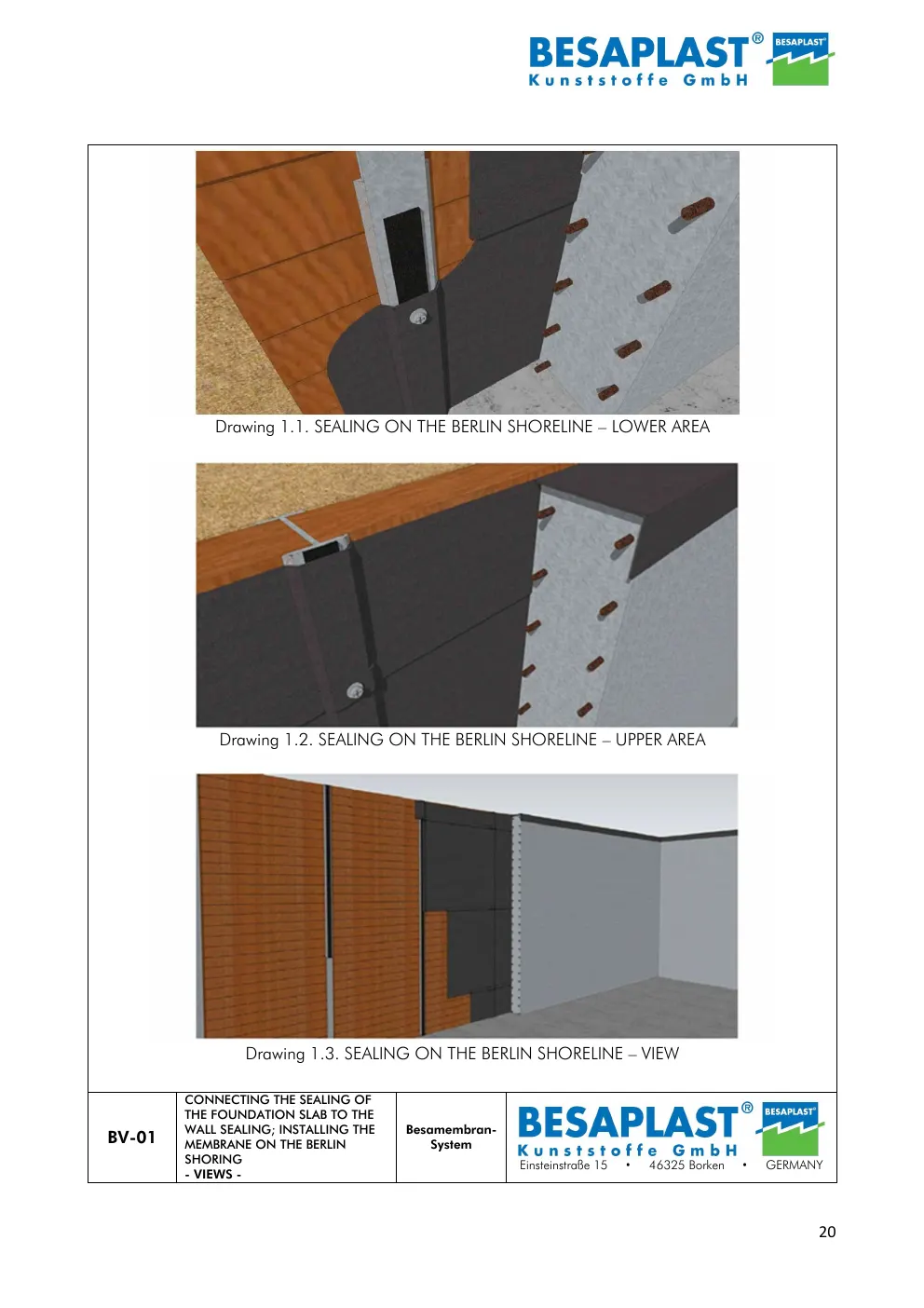

Drawing preview
